Equipment / Industrial Tools & Assembly Solutions
Atlas Copco · Industrial Tools
For precise assembly, reliable installation and everyday production. From pneumatic tools to controlled tightening systems.
Selected for your joint, torque, cycle time and working conditions.
01 / Pneumatic assembly
Angle and straight nutrunners, pulse tools, screwdrivers and ratchet wrenches. Compare the applications of each series and send your requirements to a UHM engineer. We will select a specific model for your production conditions.
Production assembly
Fast tightening on assembly lines where torque repeatability and joint access matter. An angled head, low weight and ergonomic grip help create a comfortable workstation.
Angle design · various output drives
Selection criteria: Check torque, head geometry and reaction force.
Automatic shut-off
Pulse tightening with automatic shut-off when the set torque is reached. The series combines fast operation with low reaction forces on the operator's hand. Trim and AutoTrim functions are available on selected versions.
Pulse mechanism · shut-off
Selection criteria: Specify joint type, cycle time and required repeatability.
Screw assembly
Straight and pistol tools for repetitive assembly. The range includes shut-off, slip-clutch and direct-drive versions. The configuration is selected for the fastener and tightening requirements.
LUM / TWIST · various starting methods
Selection criteria: Specify torque, bit, starting method and duty cycle.
Fixture-mounted assembly
Tools for mounting in production fixtures and assembly stations. A mechanical clutch provides repeatable tightening; an optional telescopic spindle simplifies operation, including the use of several nutrunners in parallel.
Straight design · fixture mounting
Selection criteria: Agree on mounting, spindle travel and station layout.
Pre-tightening
A solution for fast pre-tightening and operations where final torque accuracy is not the primary requirement. The pulse mechanism reduces reaction forces. These versions operate without automatic shut-off.
Pulse mechanism · non-shut-off
Selection criteria: Allow for separate final torque verification where required.
Industrial assembly and disassembly
For fast tightening and disassembly in demanding industrial environments. The impact mechanism provides a high power-to-weight ratio. The grease-retaining system supports the mechanism between service intervals.
Impact mechanism · non-shut-off
Selection criteria: Select working torque, square drive size and impact socket.
Restricted access
For tightening and loosening fasteners in confined spaces. The compact ratchet head reaches joints where conventional tools cannot fit. Reversible operation is provided.
Compact head · reversible
Selection criteria: Provide the fastener size, photos and access dimensions.

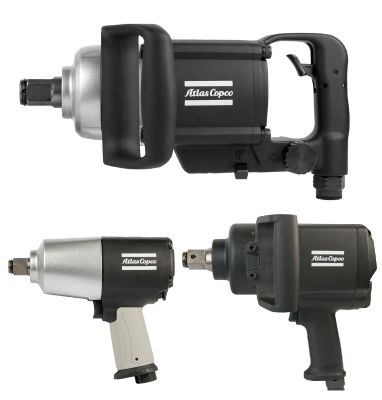

PRO · repair and maintenance
Robust tools for service and installation work. The range includes compact pistol models and larger straight versions. The impact mechanism is designed for fast rundown and tightening.
Pistol and straight versions
Selection criteria: Compare the working torque range, weight and drive size.

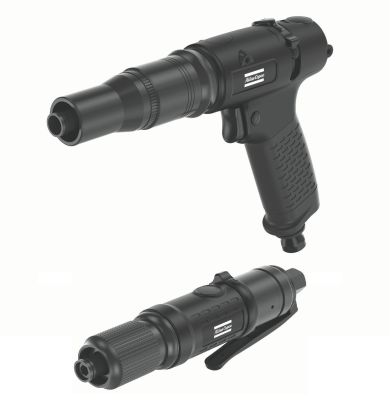

PRO · assembly operations
Straight and pistol models for screw joints. Shut-off, slip-clutch and direct-drive versions are available; select the version to suit the application and duty cycle.
Various clutches · various starting methods
Selection criteria: Specify the fastener, torque and number of operations per shift.
PRO · confined spaces
Lightweight reversible ratchets with composite housings for service, equipment repair and assembly. Variable speed control helps manage operation in confined spaces.
Reversible · variable speed control
Selection criteria: Select the square drive size and required working torque.
Series images and information: Atlas Copco — Pneumatic Assembly Tools. Images represent product families; specifications and configurations vary by version. Supply availability is confirmed on enquiry.
02 / Selection guide
Use this table to narrow your options. The final selection depends on joint parameters and operating conditions.
| Your operation | Options to consider | What to check |
|---|---|---|
| Repeatable tightening on an assembly line | LTV or ErgoPulse ShutOff | Torque, joint type, cycle time and reaction forces. |
| Driving small fasteners | Industrial pneumatic screwdrivers | Clutch type, bit, starting method and accuracy requirements. |
| Tightening in a fixed fixture | LTD | Tool mounting, spindle travel and layout. |
| Fast pre-tightening | ErgoPulse Non-shut-off | The method for subsequent final torque verification. |
| Disassembly and service work | LMS or PRO impact wrenches | Working torque, drive size, weight and duty cycle. |
| Fasteners in confined spaces | LBR or PRO W26 | Clearance around the joint, access direction and socket size. |
Explore the official Industrial Tools & Assembly Solutions portfolio by engineering task. Supply availability, configuration, lead time, warranty and service terms are confirmed for each enquiry.
Cordless, electric and pneumatic tools; controllers; fixed systems; mechanical and mechatronic wrenches; screw feeders; torque control software.
Hydraulic torque wrenches, continuous rotation systems, hydraulic bolt tensioning, flange spreaders, nut splitters and software.
Electronic wrenches, torque transducers, data collectors, joint simulation benches and software for verification and traceability.
Reaction and balancing arms, suspension systems, tool positioning, projected guidance and workstation equipment.
Automated tightening stations, fastener feeding systems, fixed spindles, sequence control and operator error-proofing.
Industrial drills, impact and riveting tools, pneumatic saws, fine and rough grinding, cutting, deburring and polishing.
Air motors for integration into machines and mechanisms, selected by power, speed, torque and operating conditions.
Self-pierce riveting, industrial material dispensing and Flow Drill Fastening for automated production processes.
Sockets, bits, adapters, extensions, batteries, cables, communication modules, consumables and air preparation.
Selection covers mechanical engineering and general assembly, heavy equipment manufacturing, automotive components, rail transport, energy and wind power, metalworking, and repair and service departments.
03 / Practical questions
LMS and PRO impact wrenches use an impact mechanism for assembly and disassembly. ErgoPulse tools use a pulse mechanism; ShutOff versions feature automatic shut-off. For critical joints, both the mechanism and verification of the tightening result matter.
Automatic shut-off when the set torque is reached. Non-shut-off versions do not include this function. They can be considered for pre-tightening followed by verification to meet process requirements.
Provide the pressure available during operation, hose length and diameter, and air-line equipment. Air consumption, treatment and lubrication requirements must be checked in the documentation for the specific model.
Include photos of the joint, the fastener size and available dimensions. This helps compare an LTV angle head, an LBR or PRO W26 ratchet design, and the required socket.
No. Torque, speed, weight, output drive and starting method depend on the specific version. The Atlas Copco specifications link on each card opens the relevant Atlas Copco product family.
Send the operation description or a known part number using the form below. Model, configuration, supply availability, lead time and service terms are confirmed for your enquiry.
Is there an operation you want to improve?
Specify the fastener, required torque and cycles per shift. If the parameters are unknown, start by describing the task.
Describe the operation in your own words. If some parameters are unknown, a UHM engineer will clarify the essential information.
Or call: +38 (066) 299-55-55
Yes. Start with the operation, fastener, torque range, cycle time and control requirements. The part number is determined after technical clarification.
A demonstration or test can be agreed after assessing the application and checking the configuration and equipment availability.
After defining the model, controller, fixtures, software and service scope. Price, delivery time, warranty and service terms are recorded in the quotation.
